For Work Printers Large Format Epson SureColor SC-F2130

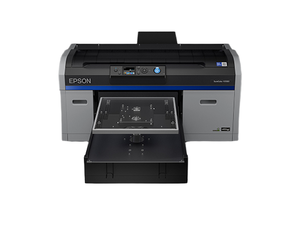

Epson SureColor SC-F2130 Direct-To-Garment (DTG) Textile Printer

Enabling Creativity Through Outstanding Performance.

Expect true garment printing reliability with SureColor™ SC-F2130 direct-to-garment printer. Equipped with PrecisionCore™ printhead technology, teamed with an automated maintenance design, the SC-F2130 brings efficiency and quality that are unmatched. Easy to use, with a quick turnaround, the printer increases your overall production, without compromising on quality.

  • Print up to 25mm thick t-shirts
  • Epson PrecisionCore printhead technology
  • Advanced automated maintenance design
  • Oeko-Tex ECO PASSPORT certification
  • Easy to use Garment Creator software





Click here to register for Epson Cloud Solution PORT.

Reseller:

CAS Technology Pte Ltd
10 Ubi Crescent #05-52
Ubi Techpark (Lobby C)
Singapore 408564
Tel: 6742 8355 Fax: 6742 9897

Innovation in Printing
Epson develops innovations such as our PrecisionCore technology and UltraChromeTM Direct-to-Garment ink technology into our printer to deliver precision of the highest quality.

PrecisionCore Technology
Print graphics up to 1,440 x 720dpi for amazing quality that truly complements your design. The technology behind PrecisionCore encompasses a precise dot control to create images with outstanding clarity and sharpness on the garments.

Epson UltraChrome Direct-To-Garment Technology
Print directly onto fabric products with Epson UltraChrome DG ink to achieve accurate and bright colours with an outstanding finish. The ink has been specially formulated with high-dispersion ink technology that helps to reduce white ink sedimentation to give it a very natural white colour. The high-density ink allows prints to be of an unmatched stunning quality, even on coloured garments. The water-based pigment is durable and washable as prints achieved scores of 4.0 or higher on industry standard AATCC wash test and is certified to be safe for adults and children, including babies, in accordance with ECO PASSPORT by OEKO-TEX®.

Easy Garment Setting
The SC-F2130 is easy to operate with minimal training required for the user. Fabric is easily loaded onto the platen and the height adjustment allows easy garment loading and adjustments according to the different needs.

Intuitive Garment Creator Software
With Epson’s intuitive Garment Creator software, it is easy for users to use and navigate through the interface to design, edit and customise designs for production. The software allows users to save their predefined colour management and layout controls to deliver consistently great results.

Commercial-grade Reliability
All components on the SC-F2130 are designed and built by Epson to ensure that the technology works cohesively to produce exceptional prints time and time again. The PrecisionCore print chip is ideal for printing with direct-to-garment ink chemistry and it is co-developed with the Epson UltraChrome DG ink technology to achieve extreme reliability.

Maximise Uptime and Productivity
The SC-F2130 is equipped with an advanced automated maintenance design that includes the use of a cleaning cartridge that will automatically clean the printhead cap to ensure that it is perpetually clean. Meanwhile, the white ink circulation system comes with an inline white ink filter to ensure better performance and reliability.

Exceptional Productivity
Engineered to meet the needs of garment printing businesses, the SC-F2130 can print a t-shirt in just 9 seconds*, because of its PrecisionCore TFP printhead.

Printing:


Printing Technology: PrecisionCore TFP® PrintheadMaximum Print Resolution: Colour 1440 × 720 dpi
White 1440 × 1440 dpiMinimum Ink Droplet Size: 12.0 plPrint Speed: Colour Mode (Default Setting):
High speed production (2 pass) - 15 sec
Production (4 pass) - 27 sec
White + Colour Mode (Default Setting):
High speed production (2 pass Colour + 4 pass White) - 52 sec
Production (4 pass Colour + 8 pass White) - 87 secMaximum Printable Area: 406 x 508 mm

Ink:


Ink Type: UltraChrome DG inkInk Capacity: 600 ml, 250 ml (C, M, Y, BK, WH)Ink Case: Ink Cartridge

Garment Media Handling:


Thickness: Up to 25.0 mmGarment Material: 100% cotton or blended materials with a minimum of 50% cottonGarment Weight: Up to 1.5 Kg

General:


Warranty: 1 yearMemory: 512 MB (Main) + 128 MB (Network)Acoustic Noise Level: Sound Pressure Level: Approx. 43.9 dB(A)
Sound Power Level: Approx. 6.1 B(A)Control Panel: 2.7" Colour LCD

Recommended System Requirements:


Win PC System Requirements: Windows 7 or later
CPU : More than 1GHz 32/64bit processor
Memory: More than 1GB free space
HDD: More than 32GB free space
Graphic: DirectX9 with Windows Display Driver Model(WDDM)1.0 or later besides more than 256MB Graphic memoryMac System Requirements: Mac OS X(10.10(Yosemite)) or later
CPU: Intel Core2Duo or later/Xeon
Memory: More than 1GB free space
HDD: More than 32GB free space

Dimensions and Weight:


Weight: Approx. 85Kg (Without ink cartridges)Dimensions: Printing: 985 x 1,425x 490 mm (W x D x H)
Stowed: 985 x 1,425x 490 mm (W x D x H)

Electrical Specifications:


Power Consumption: Operating: Approx. 55W
Ready: Approx. 22W
Sleep: Approx. 10W
Power Off (standby): Approx. 0.5WSupply Voltage: AC 100-240V 50/60Hz(A)

Utility Software:


Utility Software (Bundled in CD): Windows only: CD Package, Epson Communication Driver, Epson Manual Package, EpsonNet Print, EpsonNet Setup, EpsonNet Config SEUtility Software (Web delivery): Windows only: GCEPS, Epson Device Admin
Windows and Mac: Garment Creator, Firmware Updater, Epson Control Dashboard for DTG

Connectivity:


Interfaces: Hi-Speed USB 2.0 x 2 (for PC x 1, for USB flash memory x 1), 100BASE-TX/10 BASE-TPrinter Language: ESC/P raster

Notes:

* Refers to head firing time when using dual colour mode, image size is 10" x 8" landscape, applicable for white t-shirts only
