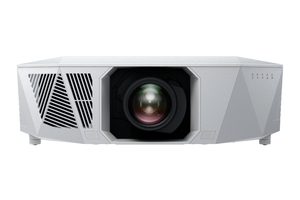

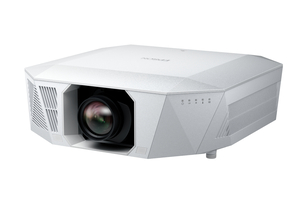

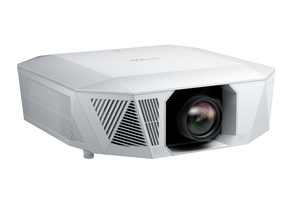

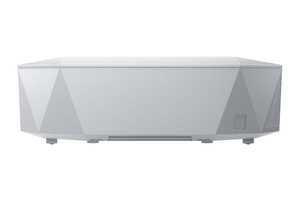

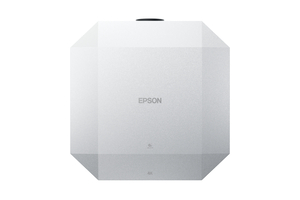

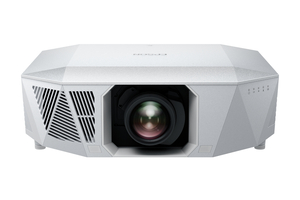

Epson EH-QL3000W Home Theatre 4K 3LCD Laser Projector

Built for experiences in brilliant 4K clarity.

For the ultimate home theatre experience, you need the best in projection technology. Bring a state-of-the-art cinematic experience to your home with Epson's EH-QL3000W home theatre projector. The model boasts a new and enhanced optical engine and cutting-edge technology, providing stunning Real 4K resolution² and 6,000 lumens of exceptional white and colour brightness¹ accuracy with our proprietary 3LCD and laser light source⁵ technology.

Install the projector in any setup as you envision, thanks to interchangeable lens options ranging from long throw, wide throw, to ultra short throw lenses⁷. Enhance your home theatre's aesthetics with our innovative vanity board and lens housing, available in various colour options⁷.

Additionally, the projector's IP control support allows seamless integration into your smart home system. Experience breathtaking images with deep blacks and vibrant colours for an unparalleled level of realism.

Find Accessories

Overview

Inspired by Light for a New, Richer Expression

Celebrate light with EH-QL3000W projector, designed to shine in bright rooms. Moving beyond traditional dark home theatres, its design philosophy embraces the beauty of illumination, seamlessly integrating with modern interiors. The projector features a sleek, elegant octagonal design with a premium finish and customizable lens options⁷, which can be enhanced with a vanity board or lens housing for additional color customisations⁷. Optimised for vibrant spaces, it delivers stunning picture quality, transforming any room into a luminous, immersive viewing experience.

Amazingly Brighter for a Cinematic Haven

Equipped with a unique cutting-edge laser optical engine, the EH-QL3000W delivers incredible contrast and 6,000 lumens of equal white and colour brightness¹ from jet black to rich, vibrant colours with its superb colour reproduction. The high aperture ratio 1080p panel is upscaled to 4K resolution², achieving 8.3 million pixels, delivering bright and vivid images in every projection.

The projector also comes jam-packed with HDR10⁴ support, Auto Contrast Enhancement, Scene Adaptive Gamma, over 5,000,000:1 contrast ratio³ and various colour modes, ensuring optimal brightness and contrast in any viewing environment. Additionally, enjoy up to 20,000 hours thanks to the laser light source life technology⁵ on your projector. That's more than 10 years of entertainment⁶!

Every. Detail. Counts.

Enjoy a viewing experience where every scene is displayed with stunning clarity and precision, making every detail come to life for a truly immersive and vivid experience. Epson's new Dynamic Tone Mapping optimises HDR scene-by-scene for precise brightness and contrast, enhancing detail and colour accuracy for a more immersive viewing experience. Additionally, with the improved frame interpolation technology and 4K 120fps and Auto Low Latency Mode (ALLM) support, never miss out on any detail when enjoying fast-moving content, optimising your gaming experience for smooth, high-quality visuals.

Effortless Setup and Connectivity

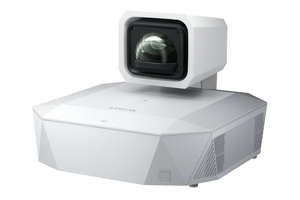

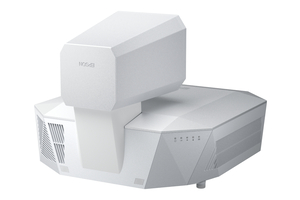

Made in Japan, our high-quality 4K lenses offer precise focus and superior colour reproduction. With 11 interchangeable lens options⁷ for flexible installation, you can achieve optimal placement and projection, ensuring ideal image clarity and alignment tailored to your viewing space. Furthermore, transform any space with seamless projection and zero offset, perfect for compact areas. Enjoy flexible installation, including ceiling concealment, while enhancing your room's interior with a sleek, unobtrusive design.

Versatile Projection Solutions for your Lifestyle

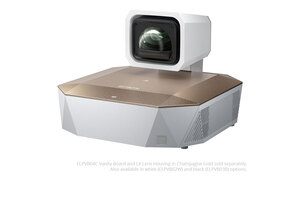

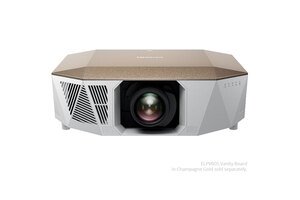

Not limited to just the projector's interchangeable lenses⁷, you can also transform your space’s aesthetic with a variety of vanity boards and lens housing options⁷, creating a sophisticated, unobtrusive finish. Pair your ELPLX02S lens with the optional⁷ Vanity Board and LX Lens Housings, available in white (ELPVB02W), black (ELPVB03B), and champagne gold (ELPVB04C) for a holistic, enhanced projector aesthetic.

Enjoy additional installation flexibility with our various IP control functions, allowing you to seamlessly integrate with smart home networks, including RS232C and wired LAN, supporting major global smart home platforms for streamlined dealer setup and network control.

The projector also supports Epson iProjection, Epson Creative Projection, and Epson Projector Content Manager to elevate your home setup and visual experience with enhanced functionality and versatility. Discover our tailored software tools designed to optimise the EH-QL3000W's performance and ease of use.

Specifications

Specifications of Main Parts:

LCD: Size: 1.04" wide panel with DMLA (C2 Fine, 12 bit, OD)
Pixel Number: 8.3M Dots (1920 x 1080 x 4)
Refresh Rate: 384 Hz - 480 HzLight Source: Type: Laser Diode
LD Input Power: 261W
Laser Life: 20,000 hours Contrast Ratio: Over 5,000,000:1Resolution: 4K²Native Resolution: Full HDProjection Lens: Type : Power Zoom, Power Focus
F-Number: 1.8 - 2.3
Focal Length: 36.0 mm - 57.3 mm
Zoom Ratio: 1 - 1.61
Throw Ratio: 1.52 - 2.47
Lens Shift Type: Powered
Lens Shift (Vertical): -64% to +64%
Lens Shift (Horizontal): -16% to + 16%Screen Size: Zoom:Wide: 60" to 1000" [1.98m to 34.19m]
Zoom:Tele: 60" to 1000" [3.24m to 55.28m]
Standard size: 100" screen @ 3.35m

Geometric Correction:

Vertical Keystone: -45 degrees to +45 degreesHorizontal Keystone: -30 degrees to +30 degreesCurve Surface: YesCorner Wall: YesPoint Correction: YesQuick Corner: YesGeometry Correction Memory: YesProjection Orientation: 360° Free

Adjustment Functions:

Image Adjustment: Colour Mode : Yes
Brightness : Yes
Thin Line Enhancement : Yes
Thick Line Enhancement : Yes
Colour Temp : Yes
Frame Interpolation : Yes

Image Enhancement:

Image Preset Mode: YesSuper Resolution: YesScene Adaptive Gamma: YesAuto Contrast Enhancement: Yes

Start-Up Period:

Start-Up Period: Less than 9 seconds (to display Epson Logo)
Warm-up period: 20 seconds

Operating Temperature:

Low Altitude Mode: 0 to 2286m (0 to 7500ft)
5°C to 35°C <41°F to 95°F>
20% - 80% humidity, no condensationHigh Altitude Mode: Over 2286m / 7500ft
20% - 80% humidity, no condensation
5°C to 30°C <41°F to 86°F>

Operating Altitude:

Operating Altitude: 0 m to 3048 m <0 ft to 10000 ft>
over 1500 m / 4921 ft: with High altitude mode

Dimension Excluding Feet (W x H x D):

Dimension Excluding Feet (W x H x D): 568 x 181 x 568mmMaximum Dimension (W x H x D): 568 x 192 x 568mm

Power:

Power Supply Voltage: 100 - 240 V AC +/- 10 %, 50/60 Hz

Weight:

Weight: Approx. 46.5lbs. / 21.1kg

Direct Power On/Off:

Direct Power On/Off: Yes / NA

Air Filter:

Maintenance Cycle: 20000H

Brightness:

White Light Output: 6,000 lmColour Light Output: 6,000 lmLight Output (Center): 6,300 lm

Colour Reproduction:

Color Reproduction: Up to 1.07 billion colors

Colour Processing:

Color Processing: 10bit

Colour Temperature:

Colour Temperature: Reference Value
9300K, duv: -0.001 (Vivid)
6500K, duv: 0.003 (Natural)

Foot Adjuster:

Foot Adjuster: Yes
-2 to +9 degrees　Front side, Rear side
-1.5 to +1.5 degrees　Left side, Right side

Storage Temperature:

Storage Temperature: -10 °C to 60 °C <14 °F to 140 °F>
10% - 90% humidity, No condensation

Theft Proof:

Kensington Lock: YesScrew holes for safety wire: Yes

Power Consumption (220-240V):

LD On (Normal/Quiet /Extended): 437W / 346WNetworked Standby: 2.0WEnergy Saving: 0.5W

Exhaust and Intake Direction:

Exhaust Direction: SideIntake Direction: Front/Side

See Full Specs Hide Full Specs

Print All Specs

Accessories

Notes:

¹Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

²4K Resolution upscaling technology shifts each pixel to produce an image on screen, up to the stated specification.

³Contrast ratio of over 5,000,000:1 is only available with HDMI source.

⁴HDR performance available with select third-party devices.

⁵No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.

⁶10 years calculated based on 5 hours usage per day.

⁷Interchangeable lens, vanity board and lens housing options sold separately.
